Eco 3

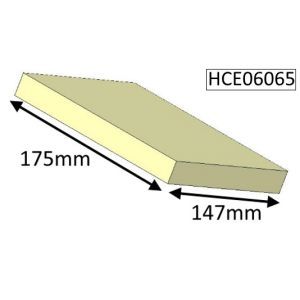

Baffle Brick to fit in steel support HCE06064 (two required) for

• Lovenholm
• Norreskoven MKI
• Eco 3

This brick replaces the original 3 baffle bricks and a steel support, part numbers HCE06022, HHW08038, HCE06021

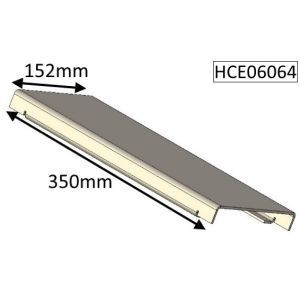

Steel Baffle Back for

• Lovenholm
• Norreskoven MKI
• Eco 3

This supersedes baffle support HCE06021 which had 3 bricks.

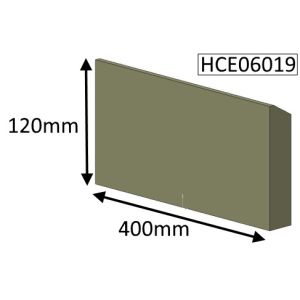

Vermiculite Rear Brick for

• Lovenholm MKII
• Norreskoven MKII
• Eco 3
• Eco 5

This brick is no longer ribbed and just plain vermiculite

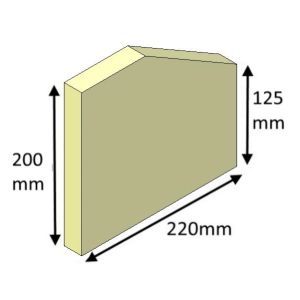

Vermiculite side brick for

• Lovenholm (MK2)
• Norreskoven (MK2)
• Eco Ideal 3
• Eco Ideal 5

One brick required for each side of stove.

This part is no longer ribbed vermiculite.

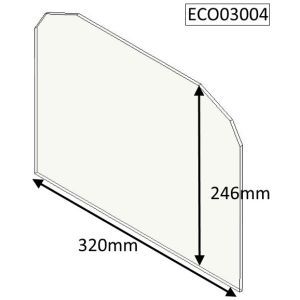

Glass panel for

• Eco 3
• Eco 5

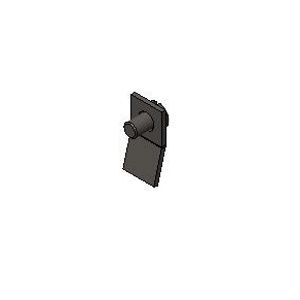

Glass Clip and Screw to secure glass. The screw should only be finger tight to leave room for the glass to expand when heated

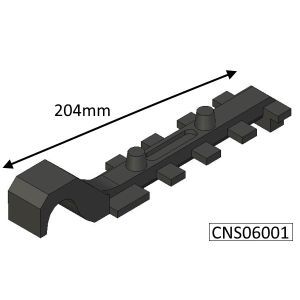

Lower Grate bar for Multifuel stove

• Eco 1 takes 6 bars
• Eco 3 takes 6 bars
• Eco 4 takes 7 bars
• Eco 5 takes 6 bars
• Avalon Compact 5 takes 6 bars
• Avalon Slimline 5 takes 7 bars
• Avalon Slimline 8 takes 9 bars
• Derwent takes 7 bars
• Consort Slimline 5 takes 7 bars
• Consort Compact 5 takes 6 bars
• Consort Slimline 9 takes 9 bars
• Norreskoven MKII takes 6 bars
• Sonderskoven takes 8 bars
• Lovenholm MKII takes 6 bars but only if the rear support is steel, please see part number CNS04012 if rear support is cast

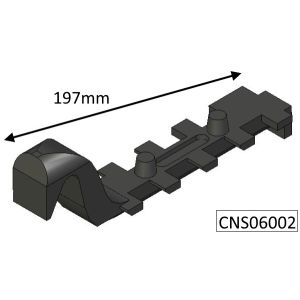

Upper Grate bar for Multifuel stove

• Eco 1 takes 5 bars
• Eco 3 takes 5 bars
• Eco 4 takes 6 bars
• Eco 5 takes 5 bars
• Avalon Compact 5 takes 5 bars
• Avalon Slimline 5 takes 6 bars
• Avalon Slimline 8 takes 8 bars
• Derwent takes 6 bars
• Consort Slimline 5 takes 6 bars
• Consort Compact 5 takes 5 bars
• Consort Slimline 9 takes 8 bars
• Norreskoven MKII takes 5 bars
• Sonderskoven takes 7 bars
• Lovenholm MKII takes 5 bars but only if the rear support is steel, please see part number CNS04013 if rear support is cast

Front riddling bar that supports grate bars in multifuel model

• Lovenholm
• Eco 3
• CB 5
• CB 7
